Chassis No. YX5113: Original-Bodied Vintage Bentleys in America
By Matthew A. Sysak ©



It is becoming increasingly rare to find a vintage Bentley of any chassis type that was originally supplied to its first retail purchaser as a closed car. So many cars have been converted to open bodies in the style of the various Vanden Plas, LeMans-type open tourers. Locating an original unmodified closed car, photographing and riding in it is a rare treat. Our featured car is exactly that, especially given its history and the circumstances that might have led to its original body being scrapped and replaced with another.

In September of 1962, George Clayton Greene, then of Concord, Massachusetts, purchased his short wheel-base (12 foot) 8 liter saloon. The chassis no. is YX5113, engine no. YX5115, with a saloon body. The purchase price was US$2,500.00. The original registration number was VO 6960.

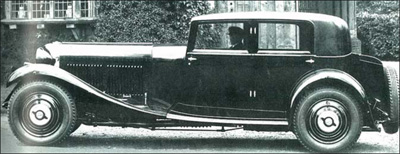

YX5113 when new                                             Brian Smith photo

The original body fitted to YX5113 was a Vanden Plas 4-light, 4 door, close-coupled sports saloon utilizing “Silent Bloc” construction. It is still on the chassis. The beautifully proportioned design includes individual front seats and an integral boot (trunk). A single spare is fitted to the rear. The original color was most likely dark blue with black hides, solid walnut wood trim and stag horn interior fittings.

Brian Smith’s "Vanden Plas Coachbuilders", page 119 shows a photograph of the very handsome body style mounted on YX5113. It states that three of this body style were made for 8 liter Bentleys. The Vanden Plas body numbers are 1719, 1743 and 1745. YX5113 carries body number 1745 “paneled as Weymann-Vanvooren Saloon.” Two of the cars came with “Ace” discs and one without. Both cars pictured show a fabric, or more likely leather, roof on these cars. The roof is now covered with a man-made covering, “Vynide” as installed by Mr. Bruce Fagan in 1956.

"Ace" wheel discs and a “DWS” jacking system were fitted. The discs are gone but the jacking system is intact and fully operational.

Click for larger view


As Mr. Greene had sold his 1911 Rolls-Royce Silver Ghost, he was searching for a large, British motorcar to tour with. He approached the Larz Anderson Collection in Boston who then owned YX5113. It took some convincing to get the museum to sell him the car. Eventually they agreed as they were changing the focus of their collection to earlier cars.

Mr. Greene, hale and hearty and now in his 9th decade, still owns and tours YX5113 to this day. He has participated in nearly all of the North American Vintage Bentley Meets over the last 15 years that this writer has attended. He is now driven by Malcolm Lee, as the 8 liter is a “handful” for him to manage.

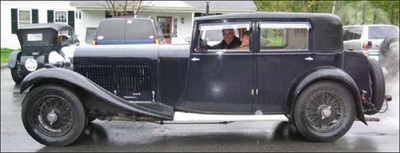

Driving on 2005 NAVBM
Car on left - Malcolm Lee :: Car on right - George Greene

YX5113 has been owned by George for some 46 years now. He was able to give a first-hand account of much of his cars history recalled from his prodigious memory as well as from his records.

The first owner was John Player, Wratton Manor, Nottingham England. YX5113 was first registered in November 1931. Mr. Player paid the equivalent of US$13,000.00, a prodigious sum in 1931, at the height of the depression. He was a member of the Player family of Player Cigarette fame. He owned the car from December 1931 to December 1935. He accumulated only 23,667miles during his 4 years of ownership before disposing of it. He thought that the car was cumbersome to drive hence his brief period of ownership and relatively low miles.

In 1936, the car was purchased by Mr. C.W. Mason, 138 York Street, Belfast, Northern Ireland who disposed of it in September of the same year.

Later in 1936, Club records show that YX5113 was then sold to Mr. H. Dagnall of Weybridge, Surrey. He owned the car from September, 1936.

As of December 1, 1937, YX5113 had accumulated 83,931 miles, the last mileage entry in the factory records. No further owners are listed between Mr. Dagnall and Mr. Taaffe whose purchase date is unknown.

Denys Taaffe of 90 Rectory Rd., Redditch, Worchestershire owned the car until advertising the car for sale in “Motorsport” in October of 1955. The asking price was £425 approx. US$1,350.00). An interesting footnote here is that Mr. Taaffe owned several 8 liters. In addition to YX5113, they were YF5001 (not currently listed in Club records) and YM5027 (now C.K.W Schellenberg).

Mr. Bruce Fagan of Hollywood, Los Angeles, California purchased YX5113 for US$1,000.00 in late 1955 after seeing Mr. Taaffe’s advertisement for the car in the British magazine, “Motorsport” in October, 1955.

In early 1956, when the car was being off-loaded from a ship at the port of Los Angeles, the front sling broke and the car dropped some 10 feet to the jetty, landing first on the right-front wheel. Substantial body damage was suffered.

The right-front brake backing plate was broken and could not be repaired. The left front brake backing plate was cracked and was subsequently welded. The frame was also bent.

Click for larger view



In addition to the chassis/frame damage, the body damage included tears and dents in the front and rear wings and front splash apron, damage to the roof, broken/cracked window glass and dented front lamps. The bent frame caused door misalignment with the body being generally loosened. This was most likely the result of the twisting upon impact with the dock. The insurance company and the stevedore company paid for most of the repair of the damage but not the straightening of the bent frame. It remained as it was following the drop.

In January 1958 Mr. Fagan decided to sell YX5113 and asked $3,250 after having invested over $5,000. Having no success with selling it, he eventually traded YX5113 to a dealer. The Vintage Car Store in Nyack, New York exchanged YX5113 for a Bentley 4¼ Gurney-Nutting Coupe de Ville. Subsequently, YX5113 was purchased by the Larz Anderson Collection in Boston.

YX5113 was owned briefly by Bill Ruger, Jr., owner of YM5044 which is the subject of a previous article in this series, prior to Mr. Greene’s ownership.

The mechanical history indicates that YX5113 has been the victim of some rather serious abuse and neglect including the aforementioned off-loading damage. The corrections of its various faults has required major commitments of time, effort and finances to keep it on the road and to bring it to its current roadworthy condition.

Club factory records show that no serious work was performed on YX5113 during Mr. Player’s ownership. There was a differential ratio change from 14/53 to 15/53 in 1935.

Having done some 83,000 miles by 1938, there surely must have been material service and repair work performed on the car. When YX 5113 was advertised by Denys Taaffe for sale in 1955, the advert stated that it was “completely overhauled with new tyres.” Correspondence offers details of that work. The entire engine, camshaft rollers, top and bottom ends were re-done. This indicates that the mechanicals were very tired prior to this work being performed during Mr. Taaffe’s ownership. This would be consistent with the mileage on the car.

Mr. Fagan, following the repair of the dockside damage to the car, had YX5113 completely re-sprayed in cream/yellow and grey. The roof material, headliner and carpets were replaced at the same time and the interior wood trim was re-finished.

Click for larger view



The sum of the foregoing was the appearance and condition of YX5113 when Mr. Greene purchased it in 1962. Having sat unused and not driven during its seven years at the Larz Anderson Collection, Mr. Greene recorded serious mechanical issues that needed work. YX5113 suffered from a badly gummed up fuel supply system; a sclerotic radiator; seriously worn Perrot shafts; very worn rocker boxes and fouled oil strainers and sump being the most critical issues requiring immediate attention. At this time the previously welded brake backing plate was replaced with a used one sourced in the UK.

These issues were attended to so as to make the car road ready. After driving YX5113 regularly until 1964, Mr. Greene decided that serious work on the mechanicals and chassis/body was in order. This effort lasted from 1964 to 1967. The car was given over to a nearby repair/restoration firm specializing in Rolls-Royce and Bentley motorcars for the work required.

The body was removed from the chassis, the so that the chassis could be straightened. The damage from the drop at the docks had resulted in poor driving characteristics. There was irregular body and door fit and the rattles and creaks in the body’s substructure was a constant source of irritation to Mr. Greene.

The engine was re-bored and the radiator was sent to the UK to be re-cored in an attempt to cure a nagging over-heating problem. In 1967, YX5113 was back on the road being driven regularly.

In 1970 Mr. Greene had YX5113 repainted dark blue with black wings which was more in keeping with the style and character of the car. The only other subsequent “cosmetic” restorations/modifications were the replacement of the seat hides, in black, and the installation of seat belts, 27 years later, in 1997.

Click for larger view



In 1982 Mr. Greene had the body taken off again for another go at correcting the chassis damage. This time, all chassis components were removed so that the bare chassis frame could be repaired once and forever.

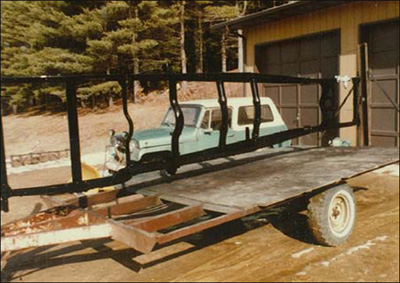

Chassis frame after straightening                                             From: G. Greene file

Additional engine work including valves; pistons; rings; camshaft drive gear; bearings and camshaft; crankshaft; vibration damper; con rods and water pump was completed. The suspension components were attended to as they were off the chassis. New half-shafts with bearings were installed. The prop shaft and the diff. were rebuilt. The body was re-mounted and the work was completed in 1986.

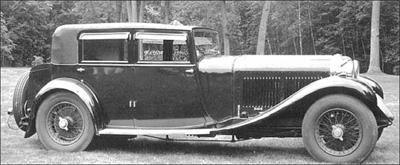

YX5113 in 1995                                                                Ken Karger photo

Overheating had been an issue for a long time so a set of Kenlowe electric fans were fitted in 1988. The overheating continued to be an issue such that the radiator was removed and again sent to the UK for service in November 1996. In September 1997 the shutter system and pipes were rebuilt when the radiator was re-installed along with the addition of electric fan cowls.

In December of 1997, white metal bits were found in the oil during an oil change resulting in the return to the engineer that performed the 1982-1986 mechanical work. This time the engine rebuild took until 1999 to complete.

In 2000, an electronic ignition was fitted. In 2001, a big end failed and the engineer yet again disassembled the engine and repaired the problem. In 2003, the no. 2 piston crown was holed out. Unfortunately, again the previous unsatisfactory work was re-done.

Yet, Mr. Greene persevered with YX5113. He continued with his devotion of time, effort and money in an attempt to finally correct all mechanical issues so as to have the reliable motorcar he wanted.

By this time, George was totally frustrated by the ongoing engine problems and the inability of the engineer to get it right. He finally switched to another engineer who was able to sort out the engine by April of 2004. Since then, YX5113 has performed without issue.

In the midst of the aggravation from the reoccurring mechanical issues, a rare stroke of good luck occurred in 2002. A letter was received by Mr. Greene, via Simon Towle at Club office, from an individual in the UK. He advised that he found and purchased the original handbook, no. 47 for chassis YX5113 and did the Club know if YX5113 was still extant. If so, did the Club know the identity of the owner?

Mr. Towle immediately forwarded the letter to George with the seller’s inquiry if he would be interested in acquiring it for £500? It goes without saying that the handbook was purchased.

Interestingly, there are handwritten notes penciled in on the inside back cover that shows the last oil change and lubrication at 23,139 miles. This was just before the original owner, John Player sold the car. It now is with the tools that came with the car. As a footnote, some of the tools still have their original canvas pouches.

The original bronze wheel hammer that came with the car in 1931 is still with the car. It has the engine number stamped onto it and is the only originally supplied hammer like that I have ever seen. It is a very rare item, indeed.

Click for larger view


Road tools

Wheel hammer


I have toured with George and had a number of rides in YX5113. It is a fine performing and riding car that has survived a large number of miles and not a little abuse. It is thanks to, in no small measure, the care, patience and tenacity of Mr. Greene that YX5113 survives in such original and roadworthy condition in spite the hardships heaped on it. YX5113 is again a handsome, reliable, comfortable and road-worthy driver.

2008 photos:

Click for larger view




Posted here on March 10, 2009
